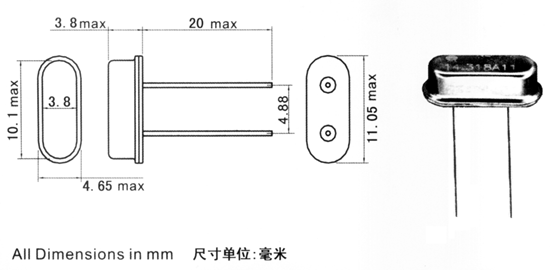

U1 TYPE--HC--49U PACKAGE
Spec sheet
Equivalent series resistor
Frequency range | 1.8432~60.000 |
Vibration mode | 1.8432~32.000 MH Z Fundaimental 27.000~60.000MH Z 3 Overtone |
Excitation power | 0.1 TYPICAL 0.2 8pF~32pF or |
Load capacitance | 8pF~32pF or Series |
Adjust the frequency difference | ±10、±30、±50（at 25℃） |
Electrostatic capacitance | 7MAX |
Operating temperature range | -20℃~+70℃ Standard |
Frequency stability | ±30ppm Standard |
Storage temperature range | -40℃~+85℃ |
Aging rate | ±5ppm |
Note: Special requirements can be processed according to user needs.
| Frequency Range(MHz) | ESR MAX(Ω) | Frequency Range(MH ) | ESR MAX(MHz ) |
1.8432～1.999 | 750 | 5.500～5.999 | 50 |
2.000～2.399 | 500 | 6.000～7.999 | 40 |
2.400～2.999 | 300 | 8.000～9.900 | 35 |
3.000～3.199 | 200 | 10.000～12.499 | 30 |
3.200～3.699 | 100 | 12.500～15.990 | 25 |
3.700～4.199 | 100 | 16.000～32.000 | 20 |
4.200～4.899 | 70 | 27.000～60.000 | 60 |
4.900～5.999 | 50 |
