Carefully processed synthetic quartz crystal plates provide users with a convenient solution for manufacturing high-quality quartz crystal components. Users can reduce processing steps, save time, improve material utilization, lower costs, and thereby enhance the competitiveness of their products.
Dimensional Tolerance：
| Z-direction | X-direction | Y-direction |
| <±0.2mm | <±0.2mm | mm |
Quality Technical Specifications：

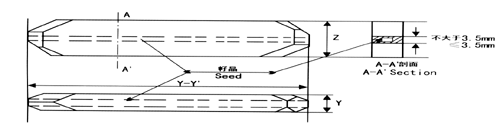

Center Position of Quality-Controlled Crystal: The width of the shaded zone containing the crystal center is less than 3.5 mm.
Flatness of the Reference Surface: Less than 0.2 mm, or as per specific requirements.
Angular Deviation of the Reference Surface from the Specified Crystallographic Orientation: Less than 15°.
Y-Board Specifications
| Type | X±0.2 (mm) | Z±0.2 (mm) | y±5 (mm) |
| RO-18Z | 65.0 | 18.9 | 210±10 |
| RO-19Z | 65.0 | 19.0 | 210±10 |
| RO-20Z | 65.0 | 20.0 | 210±10 |
| RO-22Z | 65.0 | 22.0 | 210±10 |
| RO-24Z | 65.0 | 24.0 | 210±10 |
| RO-26Z | 65.0 | 26.0 | 210±10 |
| RO-28Z | 65.0 | 28.0 | 210±10 |
| RO-30Z | 65.0 | 30.0 | 210±10 |
| RO-32Z | 65.0 | 32.0 | 210±10 |
